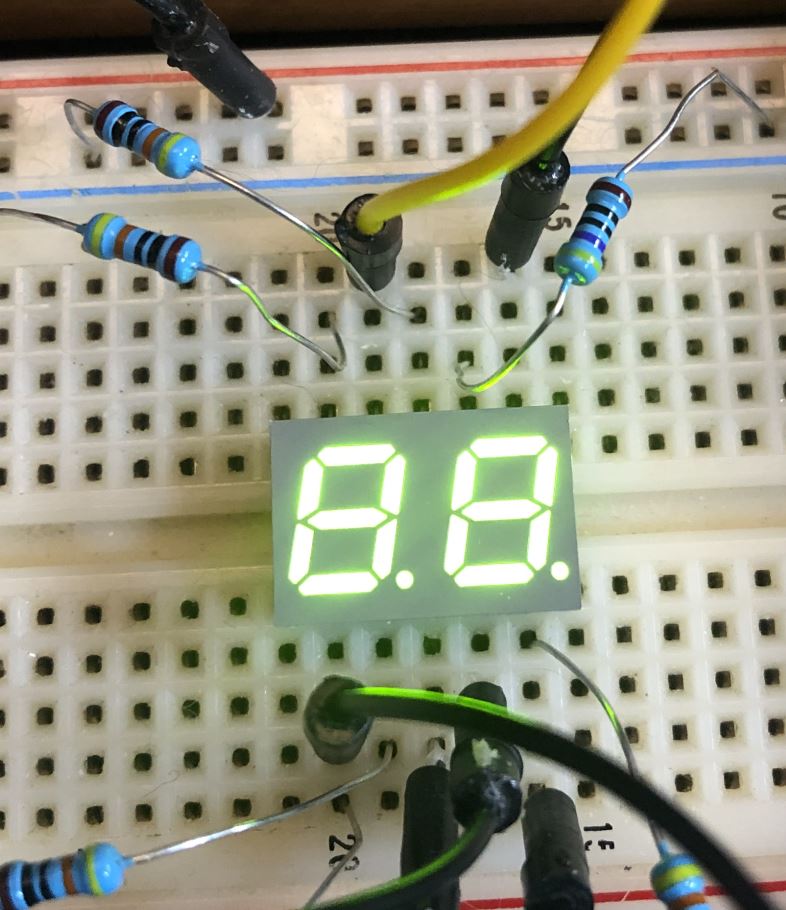

 The Netapp appliance uses a specific style and size of LED seven segment module that was tricky to find - the i2c backpack I used for this project is expecting both a 4 digit display, and a larger module, so getting the segments wired correctly was a bit tricky.
